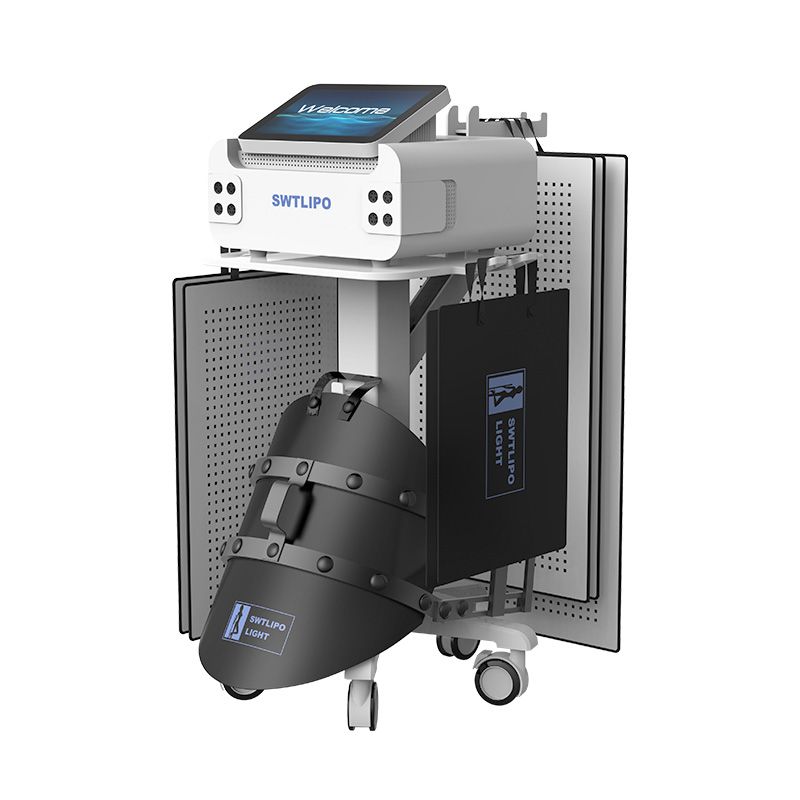

SWTLIPO 8D Light System for Weight Loss and Pain Therapy
HS-682 PRO
Upgraded 4 sizes of laser pads: with different quantities of laser lamps for different body parts.
SWTLIPO 8D Light System for Weight Loss and Pain Therapy
Theory
The SWTLIPO Light delivers both 635nm and 940nm light via high-powered, German-made, surface mount microchip lamps that are imbedded in a soft and flexible pad. This pad can easily be applied to any part of the body. Because of the SWTLIPO Light’s proprietary reflective coating, the light that would normally bounce off the skin is reflected back, resulting in a much higher retention of light energy than with other similar devices. No other system has this reflective coating. SWTLIPO Light temperature is between 43-50 degree, actual skin contact temperature is 42-45 degree. The treatment is painless, with no discomfort, and can be safely operated for clients and operators.
Unlike ultrasound, radio frequency, laser light and freezing, the system does not cause cellular damage. Quite the opposite, non-invasive SWTLIPO Light has been shown to promote a natural response within cells based on the wavelength of the light energy used and the type of cell it reaches. Dual wavelengths (635nm and 940nm) have been used in a wide range of therapies that promote some form of healing response.
The design of the SWTLIPO Light pads that allow for better light delivery and retention within the tissue has been clinically proven to provide a superior result with consistent treatment outcomes. No other pad-based device can make these claims.
Application
The SWTLIPO Light is used as a non-invasive dermatological aesthetic treatment for the reduction of circumference of the hips, waist and thighs. 635nm and 940nm (invisible light) stimulate the lymph drainage and reduce the cellulite, and the 940nm light penetrates deeper into adipose tissue.
It is also for the temporary relief of minor muscle and joint pain, arthritis, muscle spasms, relieving stiffness, promoting the relaxation of muscle tissue and to temporarily increase local blood circulation.
Treatment Areas
Parts Introduction
Light Mask and Pads
Parameters
Input Power | ≤800W |
Wavelength | 635nm, 940nm |
Lamp Source | Imported chips for assemble |
Lamp Type | Low intensity diode |
Quantities of Lamps | 4698pcs for the 7 pcs Light pads, 534pcs for the mask |
Each Lamp Energy | 200MW |
Working Mode | Continuous and Pulse |
Treatment Pads | 7pcs (1 large, 2 medium, 2 small, 2 mini), 1 mask |
Touch Screen | 12.1inch Touch Screen |
Cooling System | Air Cooled |
Voltage | 100-130V/200V-230V; 50Hz-60Hz |
Safety | On Board Diagnostics |
Classification | Electrical Class Ⅱ, Type B applied part |
Ingress Rating | IPXO |
Environmental Requirement | 10。C to 40。C. Non-condensing humidities below 75% RH |
CE | CE with LVD and EMC |
Machine Packing Size | 49cm*43cm*38cm |
Cart Package size | 73.5cm*62cm*35cm |
N. W. | 20kgs, 34kgs (with cart) |
G. W. | 22kgs, 36kgs (with cart) |
Operation
Cautions
(1) Cautions before Treatment
Before using this machine, be sure to check if the parts are connected correctly.
Insert the power supply first, turn on the total switch of the instrument to avoid current reflow phenomena.
The accessory cable must be aligned with the socket when accessing the host, avoiding the accessory jack interruption caused by the accessories.
Carefully move the machine, organic glass cannot wipe with alcohol.
(2) Cautions after Treatment
Customers are advised to take a 30-minute walk or exercise every day.
Avoid too greasy/oily food and sweets. Make dinner a smaller meal.
Reduce intake of caffeine and alcohol.
It is recommended to take VC 1000mg / time, 2 times a day after treatment.
It is highly recommended that the client participate in cardiovascular activity immediately after the treatment to both stimulate the lymphatic’s further, and to engage the muscles to use the free fatty acids as an energy source.
It is also recommended to advise clients to drink plenty of water following the treatment.
Contraindications
(1) Epilepsy.
(2) Pregnancy/Lactating/Breast Feeding.
(3) Liver/Kidney Disorder.
(4) Pacemakers.
(5) Uncontrolled Hypertension.
(6) Severe Thyroid Gland Dysfunction.
(7) Cancer/Radiation treatment.
(8) Immunosuppressive Disorders.
(9) Heart Disease/Cardiac Arrhythmias.
(10) Not recommended for individuals under the age of 18.
FAQ
(1) What does a SWTLIPO Light treatment feel?
The customer will lie on a treatment bed and the pads are placed over the area to be treated. The system will be turned on, and the patient will feel a slight warming sensation, but no pain or discomfort. Most customers can read or use their phone/portable device, while some will even take a short nap.
(2) How long will the results last?
Results will vary from patient to patient, primarily due to the commitment by the patient to their goals. If a customer maintains a healthy lifestyle of a diet and exercise program that promotes weight control, their results can be long term.
(3) What is the difference between laser light and SWTLIPO light when it relates to this technology?
The light emitted by a 635nm device, regardless of whether the source is laser-based or SWTLIPO, will deliver the same reaction within the tissue. This has been proven in a study done by a physician that indicated both types of light, laser and SWTLIPO, became diffused upon entering the dermis. The light was diffused to the point where there was no negligible difference between the two types of light when it reached the subcutaneous fat cells (fat cells below the surface of the skin).
(4) Can anyone be treated?
A SWTLIPO Light treatment is safe and effective for anyone who does not have a medical condition that reduces their ability to eliminate waste via the liver and kidneys. Customers are recommended to consult their physician before starting any type of diet or exercise program.
(5) What areas of the body can be treated?
The SWTLIPO Light can be used on any part of the body: hips, waist, thighs, back, upper arms and neck.
