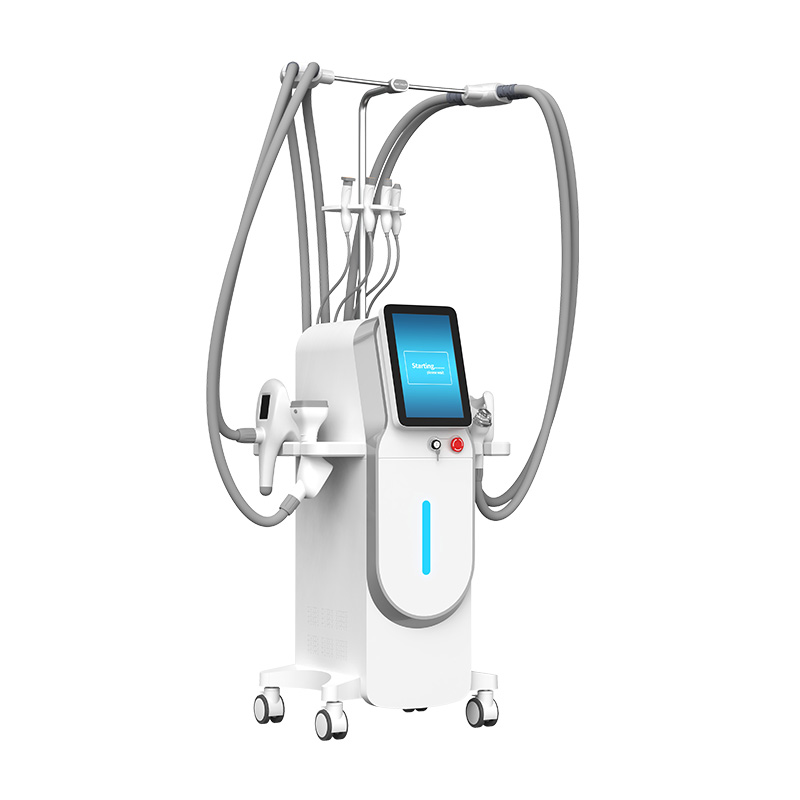

8 in 1 Multi-functional Velawell Vacuum RF Slimming Machine
V687 PRO
velawell vacuum RF and Fractional RF
8 in 1 Multi-functional Velawell Vacuum RF Slimming Machine
Theory
(1) Vacuum RF
Infrared RF Vacuum Roller technology combines infrared light, bi-polar radio frequency energy and vacuum, which cause deep heating of the fat cells, their surrounding connective tissue and the underlying dermal collagen fibers. This type of efficient heating and vacuum stimulates the growth of new and better collagen and elastin which results in localized reduction in skin laxity, body volume, and an overall improvement in skin structure and texture.
Scope of Treatment: Body contouring; Cellulite removal; Body slimming; Circumference reduction; Skin tightening; Face lifting; Wrinkle removal; Skin texture & tone.
5 Technologies in one machine - Vacuum + 940nm Laser + Bipolar RF + Cavitation + Rollers
(1) Infrared laser reduces skin impedance by heating skin and RF energy penetrates deeply into connective tissue. The synergistic combination of infrared laser and conducted RF energies increases the oxygen intracellular diffusion by heating the skin.
(2) Vacuum plus specially designed rollers manipulate leads RF penetration to be even 5-15mm. At the same time, vacuum and roller mechanical tissue manipulation nips and stretches fibrillar connective tissue, effectively breaks down subcutaneous fat as well as extruded capillary vessel, Increase lymphatic drainage, promotes metabolism and reduces or shrinks the size of the actual fat chamber and greatly improved body contouring effect.
(3) The technology that vacuum folds skin makes RF energy penetrate a specific folded skin, greatly improve effect and safety, even for the upper eyelid area treatment.
(2) Fractional RF
Each pulse emits radio frequency energy through multiple matrix points, which is directly heated under the skin; under the stimulation of matrix needles, subcutaneous produce a large amount of collagen, and use radio frequency to directly heat under the skin to repair broken collagen fibers, so as to achieve a better repair effect.
Application
Wrinkle removal. Body shaping. Body circumference reduction. Cellulite reduction. Skin tightening. Skin surface smooth. Massage. Eyelid area treatment. Body slimming. Skin lifting.
Parts Introduction

Handles Introduction


Parameters
Power | ≤450W | |
Screen | 12.1inch touch screen | |
Voltage | 220v/110v; 50Hz-60Hz | |
Package Size | 118cm*61cm*58cm | |
Vacuum RF | Cavitation | 40KHz |
Vacuum | 100Kpa | |
Vacuum Level | 1-7 | |
RF Energy Density | 0 - 50J/cm2 | |
Rev of roller | 0 - 36 rpm | |
Working mode for roller | 4 types | |
Laser Wavelength | 650nm; 940nm | |
Laser Power | 0 - 4W | |
Fractional RF | Frequency | 1MHz |
Operation
