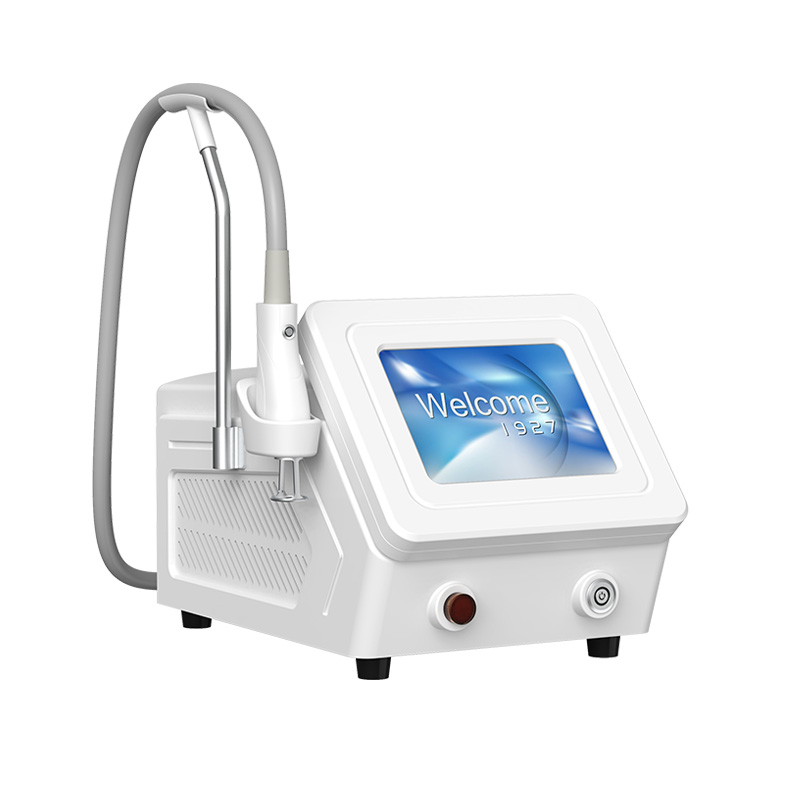

Portable 1927nm Thulium Laser Skin Beauty Machine

PL-768

Portable 1927nm Thulium Laser Skin Beauty Machine
Portable 1927nm Thulium Laser Skin Beauty Machine

Portable 1927nm Thulium Laser Skin Beauty Machine


Principle

The thulium laser is an infrared laser and the main target tissue for skin absorption is water. Since the water content of the dermis is higher than that of the epidermis, the accumulation of heat and temperature rise in the dermis is higher than that in the epidermis during thulium laser treatment. Since the water content of epidermis is smaller, it will not be damaged by intense heating and cause edema and injury in the heating process. The skin will only be slightly reddened, with a certain sense of heat and pain, but it will not sting, burn or even be damaged.

The 1927nm fractional mode is characterized by the use of a fractional handle to focus the laser onto a small spot (approximately 0.1-0.15mm in diameter) to irradiate the skin, achieving a non-ablative or micro-ablative effect, mainly for skin rejuvenation and wrinkle reduction. If the laser is applied for a long enough time, a micro-ablative effect is produced. If the duration of action and energy density are reduced, a thermal coagulation vertical band may be produced, which activates collagen and shrinks the skin.


Application

(1) Improve skin texture: reduce fine lines, wrinkles and enlarged pores for smoother and more refined skin.

(2) Improve uneven Skin Tone: Reduce pigmentation, sunspots and melasma, make skin tone more even and brighter.

(3) Treats acne scars: anti-inflammatory, promotes skin regeneration and improves the appearance of acne scars.

(4) Firming and lifting skin: anti-aging, stimulates collagen regeneration for firmer, more elastic skin.

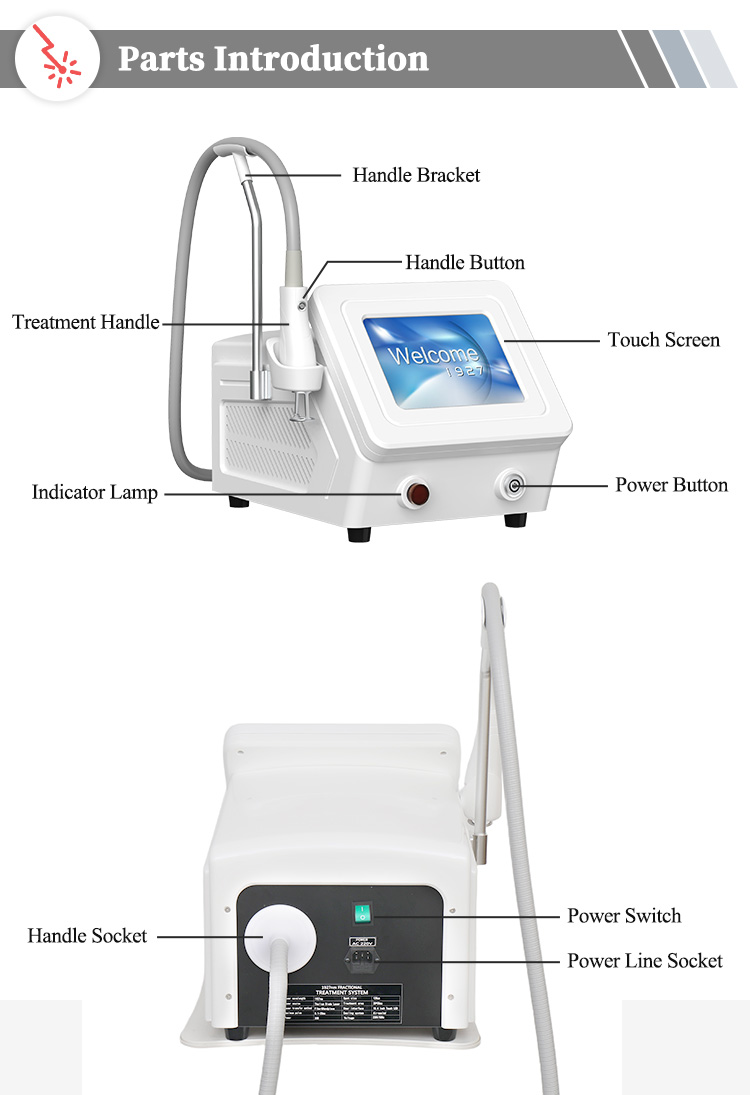

Parts Introduction

PL-768 详情 5.jpg

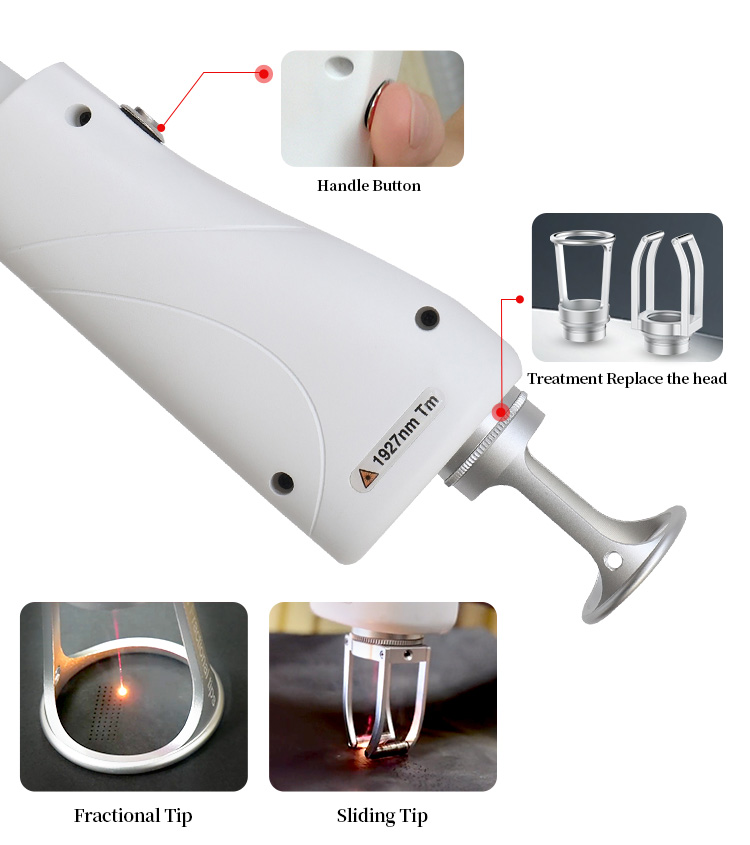

Handle Introduction

PL-768 详情 12.jpg


Parameters

Power

600W

Laser Wavelength

1927nm

Operation Mode

Fractional Pulse, Super Pulse

Output Power

12W

Pulse Width

0.1-20ms

Pulse Energy

1mj-300mj (adjustable)

Dot Pitch

0.1-2.0mm (adjustable)

Spot Size

0.1mm focus

Scan Mode

Order, Random

Scan Graphics

Square/Circle/Triangle/Hexagon/Custom

Graphic Size

1.0*1.0mm-20*20mm

Treatment Area (Sliding Tip)

6mm*6mm (Min.);   8mm*12mm (Max.)

Screen

10.4-inch Touch LED

Cooling System

Air Cooling

N. W./G.   W.

13kgs/22kgs

Package Size

62cm×48cm×42cm

Voltage

AC220V±10%, 50Hz

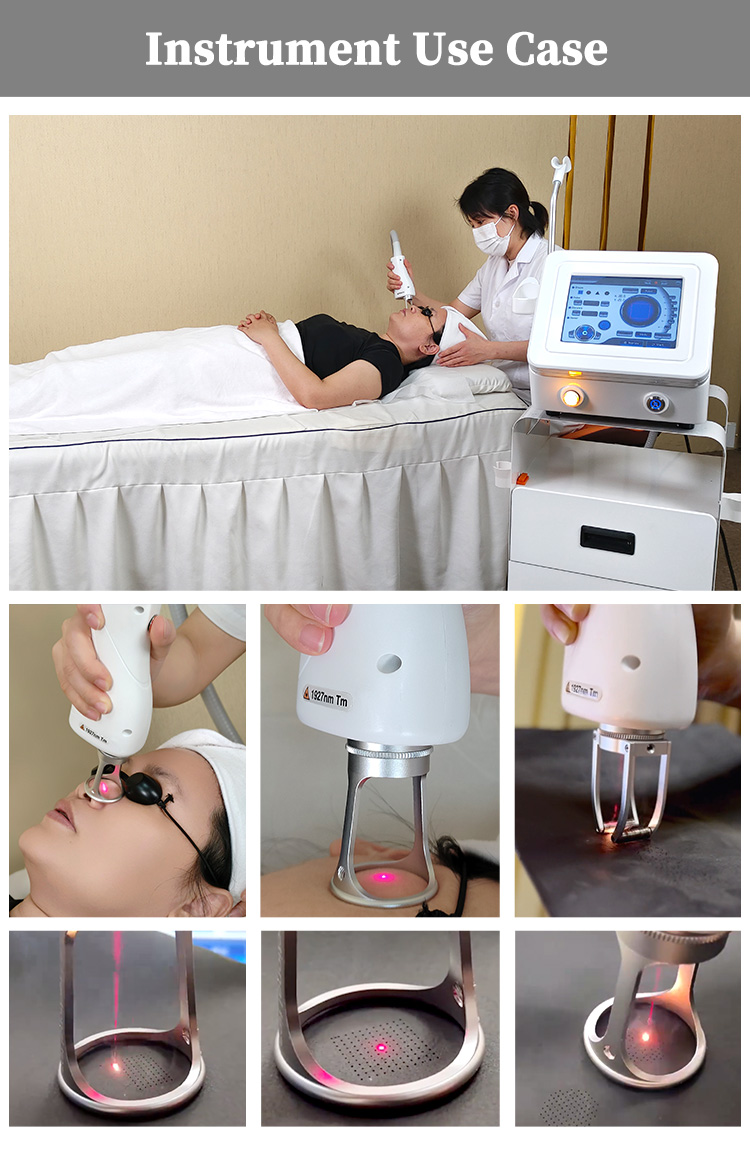

Operation

PL-768 详情 17.jpg
